Suzuki 20 HP DF20AS5

Name: Suzuki 20 HP DF20AS5
SKU: DF20AS5
Price: 3050.0 USD
Availability: InStock

Back to catalog

$3,050.00

In stock

Product Details

Horsepower: 20hp

Weight: 97.0lb

Shaft Length: 15" (Short)

Starting: Manual

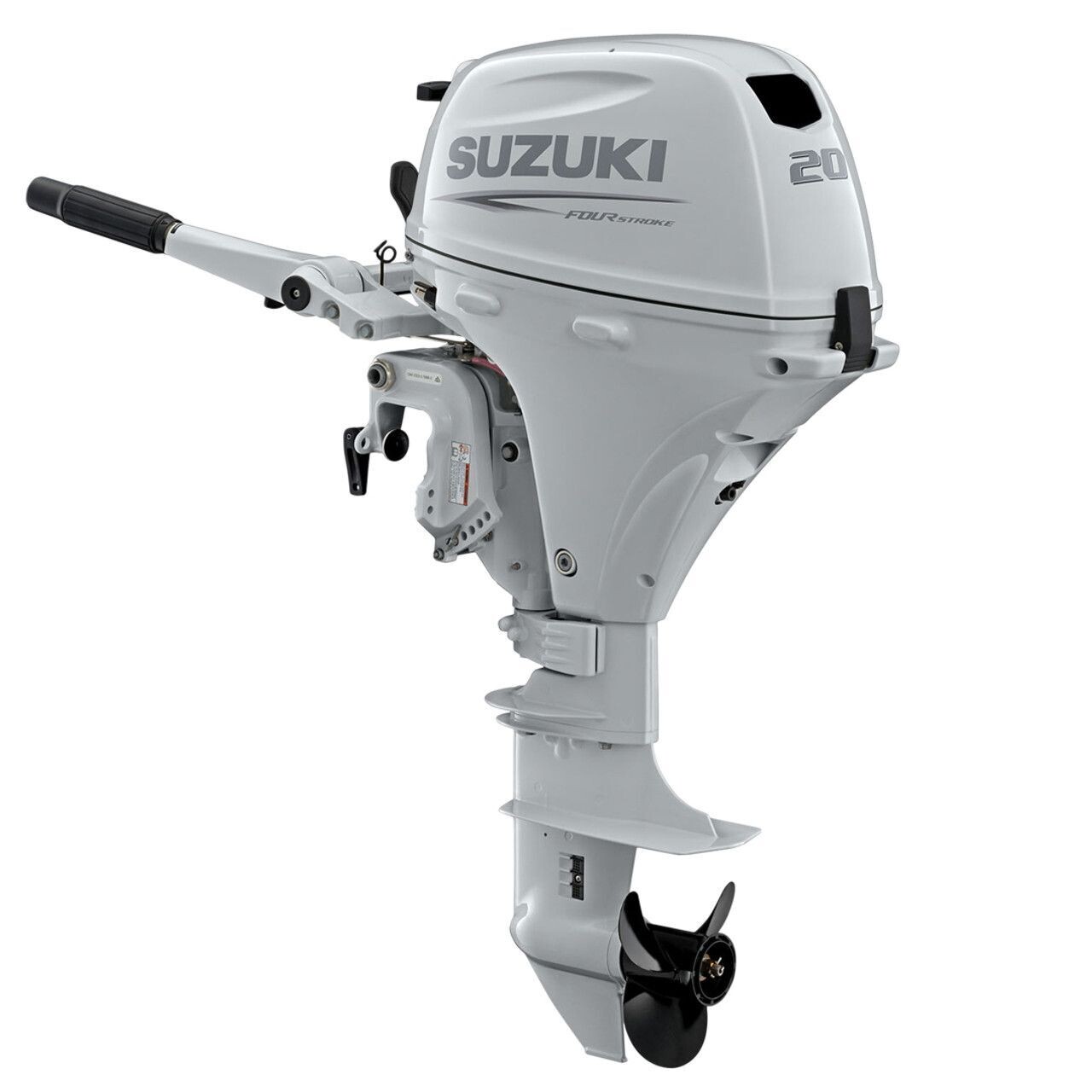

Suzuki's all new fuel efficient 20hp EFI model DF20AS5 four-stroke outboard with the manual rope start and 15 inch shaft is an affordable choice of power for medium to larger sized jon boats, skiffs, and inflatable boats.. As the lightest outboard in its class and one of the quietest 4-strokes ever built, the Suzuki 20hp outboard motor is a great example of Suzuki's excellence in engineering. Check out the long list of standard features below which make the 20hp Suzuki outboard engine an exceptional value.

*Photo may not show the actual model.

CA Customers: www.P65Warnings.ca.gov

Warning: Cancer and Reproductive Harm

Features

Electronic Fuel Injection (EFI)

Sleek, Compact, Lightweight Design

Saltwater Rated

Fresh Water Flushing Port

Multi-Layer Corrosion Protection

Decompression Release for Easy Starts

Forward-Mounted Gear Shift Lever

Twist-Grip Throttle with Tension Control

Quiet Through-the- Prop Exhaust

Start-in-Gear Lockout Protection

Proven Automotive Style Oil Pump

Shallow Water Drive

5 Trim Positions w/ Tilt Lock Pin

Low OIl Pressure Warning System

Over Heat Warning System

Over-Rev Limiter Protection

Steering Friction Tension Control

Integrated Carrying Handle

Emergency Lanyard Stop Switch

3.1 US Gallon Fuel Tank/Fuel Line

3-Blade Aluminum Propeller

3-Star Ultra-Low Emission Rating

Suzuki's Lean Burn Control System

Suzuki's Newest 5-Year Manufacturer Warranty

Specs

MODEL	DF20AS5
SKU	DF20AS5
WEIGHT	97.0 lb
MANUFACTURER	Suzuki
COUNTRY OF MANUFACTURE	Thailand
HORSEPOWER	20hp
SHAFT LENGTH	15" (Short)
STEERING	Tiller
STARTING	Manual
TRIM & TILT	Manual
FUEL DELIVERY	EFI
FUEL TANK	External
CYLINDER(S)	2
DISPLACEMENT	327 cc (20.0 cubic inches)
BORE AND STROKE	60.4 x 57 mm (2.38 x 2.24 inches)
FULL THROTTLE RPM RANGE	5300-6300 RPM
IGNITION SYSTEM	Digital Capacitor Discharge Ignition System
INDUCTION SCAVENGING	SOHC
VALVES PER CYLINDER	2
FUEL TYPE	Unleaded Gasoline (87 octane)
FUEL TANK / FUEL LINE	INCLUDED: 3.1 Gallon Fuel Tank and Fuel Line
OIL TYPE	SAE 10W-30 or SAE 10W-40
OIL CAPACITY	33.8 fl oz (1000 mL)
LUBRICATION	Wet Sump; Trochoid Type Cam-Driven Oil Pump
ALTERNATOR	12V 80W 6A (OPTIONAL)
COOLING SYSTEM	Water-Cooled
SALTWATER RATED	Yes
GEAR RATIO	2.08:1
GEAR SHIFT	Forward-Neutral-Reverse (front-mounted lever)
PROPELLER	3 blade aluminum 9.25" Dia. x 9.0" Pitch
INTERNAL BATTERY	No

In The Box

3.1 gal. Integral Fuel Tank
Fuel Line
Owner's Manual
Suzuki's Newest 5-Year Manufacturer Warranty
Aluminum Propeller
Tool Kit

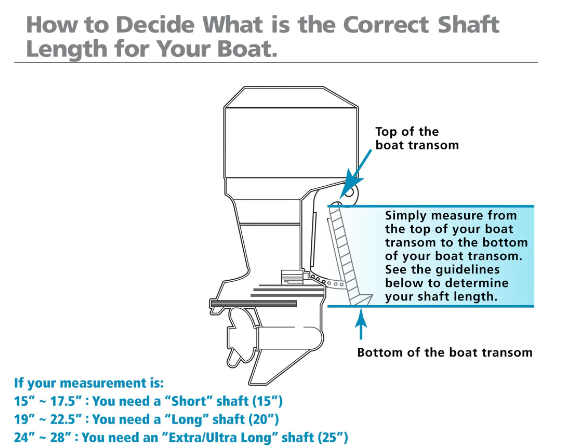

Shaft Length Guidelines

Model year Information

Thank you for your interest in Suzuki outboard motors. Suzuki doesn't use and prohibits advertising of model years. All of our inventory is brand new, current production, and includes the full 5-Year Suzuki Marine warranty. You can visit Suzuki Marine's FAQs for more information.

WHAT DOES MODEL YEAR ELIMINATION MEAN AND HOW DOES IT AFFECT MY SUZUKI OUTBOARD?

We have studied the actions of the other major outboard manufacturers and now believe that Model Year Elimination will offer a host of benefits to our Customers, Dealers and Boat Builders. Suzuki Marine can now introduce new outboard models to the market during the boating season, instead of waiting until the model year change. Consumers will be able to purchase these models sooner than in the past. Dealers and Boat Builders will carry a better supply of outboards because they will not have to reduce inventory in advance of a Model Year Change.
