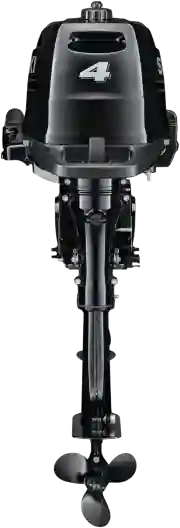

Suzuki 4 HP DF4AS5
Horsepower: 4hp
Weight: 52.0lb
Shaft Length: 15" (Short)
Starting: Manual
The Suzuki 4hp outboard motor model DF4AS5 is perfect for canoes, small fishing boats, and small to medium sized tenders and inflatables. The 4 hp Suzuki outboard boasts the largest displacement of any one cylinder outboard in this hp class. A full-size twist grip throttle, tiller steering, forward-neutral-reverse gear shift with large easy-to-use shift lever, 15 inch shaft, digital CDI ignition and integral fuel tank are just a few of the features you'll find standard on the 4hp. We offer Suzuki's newest 5-year manufacturer warranty, free shipping, and discounted prices!
*Photo may not show the actual model.
CA Customers: www.P65Warnings.ca.gov
Warning: Cancer and Reproductive Harm
Features
Specs
| MODEL | DF4AS5 |
|---|---|
| SKU | DF4AS5 |
| WEIGHT | 52.0 lb |
| MANUFACTURER | Suzuki |
| COUNTRY OF MANUFACTURE | Thailand |
| HORSEPOWER | 4hp |
| SHAFT LENGTH | 15" (Short) |
| STEERING | Tiller |
| STARTING | Manual |
| TRIM & TILT | Manual |
| FUEL DELIVERY | Carburetor |
| FUEL TANK | Internal |
| CYLINDER(S) | 1 |
| DISPLACEMENT | 138 cc (8.4 cubic inches) |
| BORE AND STROKE | 2.38 x 1.89 inches |
| FULL THROTTLE RPM RANGE | 4000-5000 RPM |
| IGNITION SYSTEM | Digital Capacitor Discharge Ignition System |
| INDUCTION SCAVENGING | OHV |
| VALVES PER CYLINDER | 2 |
| FUEL TYPE | Unleaded Gasoline (87 octane) |
| FUEL TANK / FUEL LINE | .26 US Gallon Integral Fuel Tank |
| OIL TYPE | SAE 10W-30 or SAE 10W-40 |
| OIL CAPACITY | 24 fl oz (700 mL) |
| LUBRICATION | Wet Sump |
| ALTERNATOR | Optional 12V 5A (installation required) |
| COOLING SYSTEM | Water-Cooled |
| SALTWATER RATED | Yes |
| GEAR RATIO | 1.92:1 |
| GEAR SHIFT | Forward-Neutral-Reverse (starboard side lever) |
| PROPELLER | 3 blade aluminum 7.5" Dia. x 6.5" Pitch |
| INTERNAL BATTERY | No |
In The Box
- .26 gal. Integral Fuel Tank
- Owner's Manual
- Suzuki's Newest 5-Year Manufacturer Warranty
- Aluminum Prop
- Tool Kit

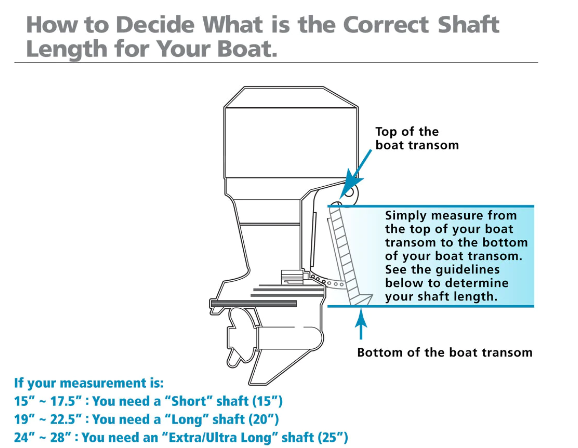

Shaft Length Guidelines
Model year Information
Thank you for your interest in Suzuki outboard motors. Suzuki doesn't use and prohibits advertising of model years. All of our inventory is brand new, current production, and includes the full 5-Year Suzuki Marine warranty. You can visit Suzuki Marine's FAQs for more information.
WHAT DOES MODEL YEAR ELIMINATION MEAN AND HOW DOES IT AFFECT MY SUZUKI OUTBOARD?
We have studied the actions of the other major outboard manufacturers and now believe that Model Year Elimination will offer a host of benefits to our Customers, Dealers and Boat Builders. Suzuki Marine can now introduce new outboard models to the market during the boating season, instead of waiting until the model year change. Consumers will be able to purchase these models sooner than in the past. Dealers and Boat Builders will carry a better supply of outboards because they will not have to reduce inventory in advance of a Model Year Change.
