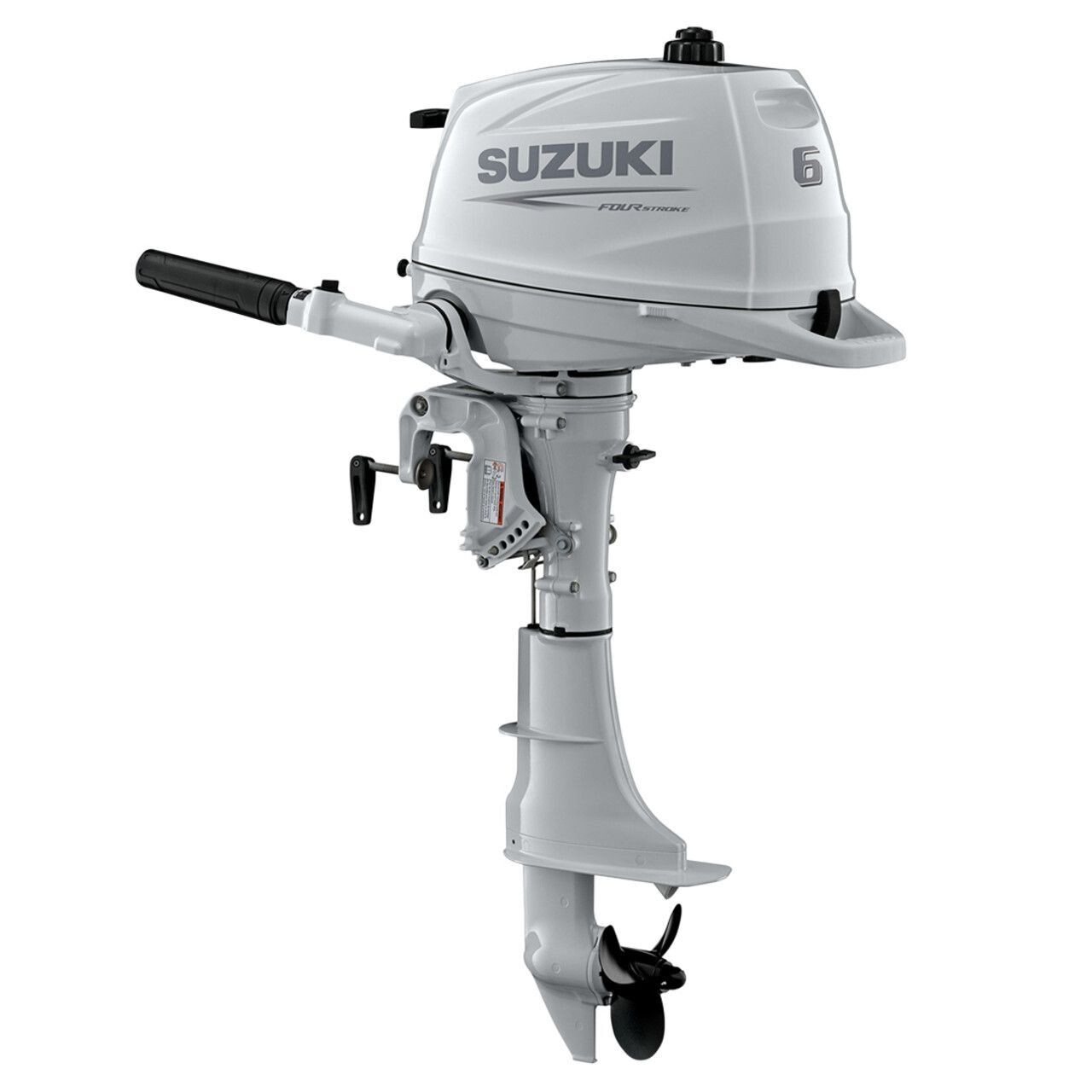

Suzuki 6 HP DF6AS5
6hp HORSEPOWER
| Shaft Length: | 15" (Short) |
|---|---|
| Starting: | Manual |
| SKU: | DF6AS5 |
If you're in search of lightweight portable power, the 52 lb. Suzuki 6hp outboard motor model DF6AS5 is an excellent choice for jon boats, skiffs, tenders and small to medium sized inflatables. The 6hp Suzuki engine with a 15 inch shaft offers the largest displacement of any one cylinder outboard in this hp and weight class. The 6hp Suzuki outboard motor shares many of the 4hp features with increased performance made possible by a larger carburetor. Additionally, the 6 hp Suzuki outboard models feature an external fuel tank connection as standard equipment allowing the user to easily connect an optional external fuel tank for longer range(fuel tank and fuel line/connector purchased separately). We offer Suzuki's newest 5-year manufacturer warranty, free shipping, and discounted prices!
*Photo may not show the actual model.
Features
- Compact and Lightweight Design
- 3 Way Storage: Stbd, Port, or Front
- Saltwater Rated
- Multi-Layer Corrosion Protection
- Quiet Below-the-Water Exhaust
- Fold-Down Tiller Handle
- Rubber Mount Bracket System
- Twist-Grip Throttle with Tensioner
- Large Carrying Handle
- Large Gear Shift Lever
- Digital CDI Ignition for Quick Starting
- Larger Carburetor for Additional HP
- 3-Star Ultra-Low Emission Rating
- Shallow Water Drive (2 positions)
- 5 Trim Positions w/Tilt Lock Pin
- Over-Rev Limiter Protection
- Throttle Tension Control
- Steering Friction Tension Control
- 90° Left / Right Turning for Tight Spots
- Emergency Lanyard Stop Switch
- Built-in .26 Gal. Fuel Tank (35 min. @ WOT)
- External Tank Ready Connection on Engine
- 3-Blade Aluminum Propeller
- Suzuki's Newest 5-Year Manufacturer Warranty
Specs
| MODEL | DF6AS5 |
|---|---|
| SKU | DF6AS5 |
| WEIGHT | 52.0 lb |
| MANUFACTURER | Suzuki |
| COUNTRY OF MANUFACTURE | Thailand |
| HORSEPOWER | 6hp |
| SHAFT LENGTH | 15" (Short) |
| STEERING | Tiller |
| STARTING | Manual |
| TRIM & TILT | Manual |
| FUEL DELIVERY | Carburetor |
| FUEL TANK | Internal |
| CYLINDER(S) | 1 |
| DISPLACEMENT | 138 cc (8.4 cubic inches) |
| BORE AND STROKE | 2.38 x 1.89 inches |
| FULL THROTTLE RPM RANGE | 4750-5750 RPM |
| IGNITION SYSTEM | Digital Capacitor Discharge Ignition System |
| INDUCTION SCAVENGING | OHV |
| VALVES PER CYLINDER | 2 |
| FUEL TYPE | Unleaded Gasoline (87 octane) |
| FUEL TANK / FUEL LINE | .26 US Gallon Integral Fuel Tank |
| OIL TYPE | SAE 10W-30 or SAE 10W-40 |
| OIL CAPACITY | 24 fl oz. (700 mL) |
| LUBRICATION | Wet Sump |
| ALTERNATOR | Optional 12V 5A (installation required) |
| COOLING SYSTEM | Water-Cooled |
| SALTWATER RATED | Yes |
| GEAR RATIO | 1.92:1 |
| GEAR SHIFT | Forward-Neutral-Reverse (starboard side lever) |
| PROPELLER | 3-Blade Aluminum 7.5" Dia x 7.0 " Pitch |
| INTERNAL BATTERY | No |
In The Box
- .26 gal. Integral Fuel Tank
- Owner's Manual
- Suzuki's Newest 5-Year Manufacturer Warranty
- Aluminum Prop
- Tool Kit

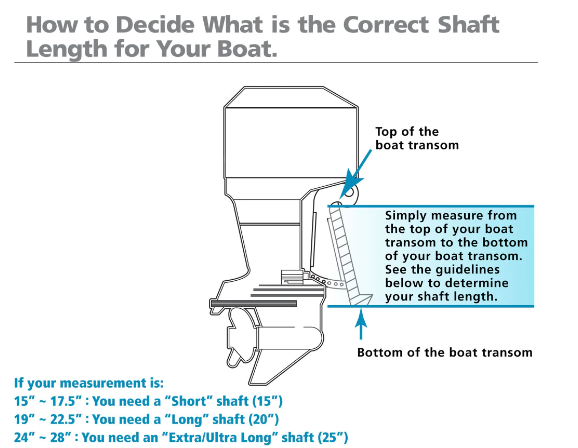

Shaft Length Guidelines
Model Year Information
Thank you for your interest in Suzuki outboard motors. Suzuki doesn't use and prohibits advertising of model years. All of our inventory is brand new, current production, and includes the full 5-Year Suzuki Marine warranty. You can visit Suzuki Marine's FAQs for more information.
WHAT DOES MODEL YEAR ELIMINATION MEAN AND HOW DOES IT AFFECT MY SUZUKI OUTBOARD?
We have studied the actions of the other major outboard manufacturers and now believe that Model Year Elimination will offer a host of benefits to our Customers, Dealers and Boat Builders. Suzuki Marine can now introduce new outboard models to the market during the boating season, instead of waiting until the model year change. Consumers will be able to purchase these models sooner than in the past. Dealers and Boat Builders will carry a better supply of outboards because they will not have to reduce inventory in advance of a Model Year Change.
